I made a CLI space visualization / snapshot deletion tool

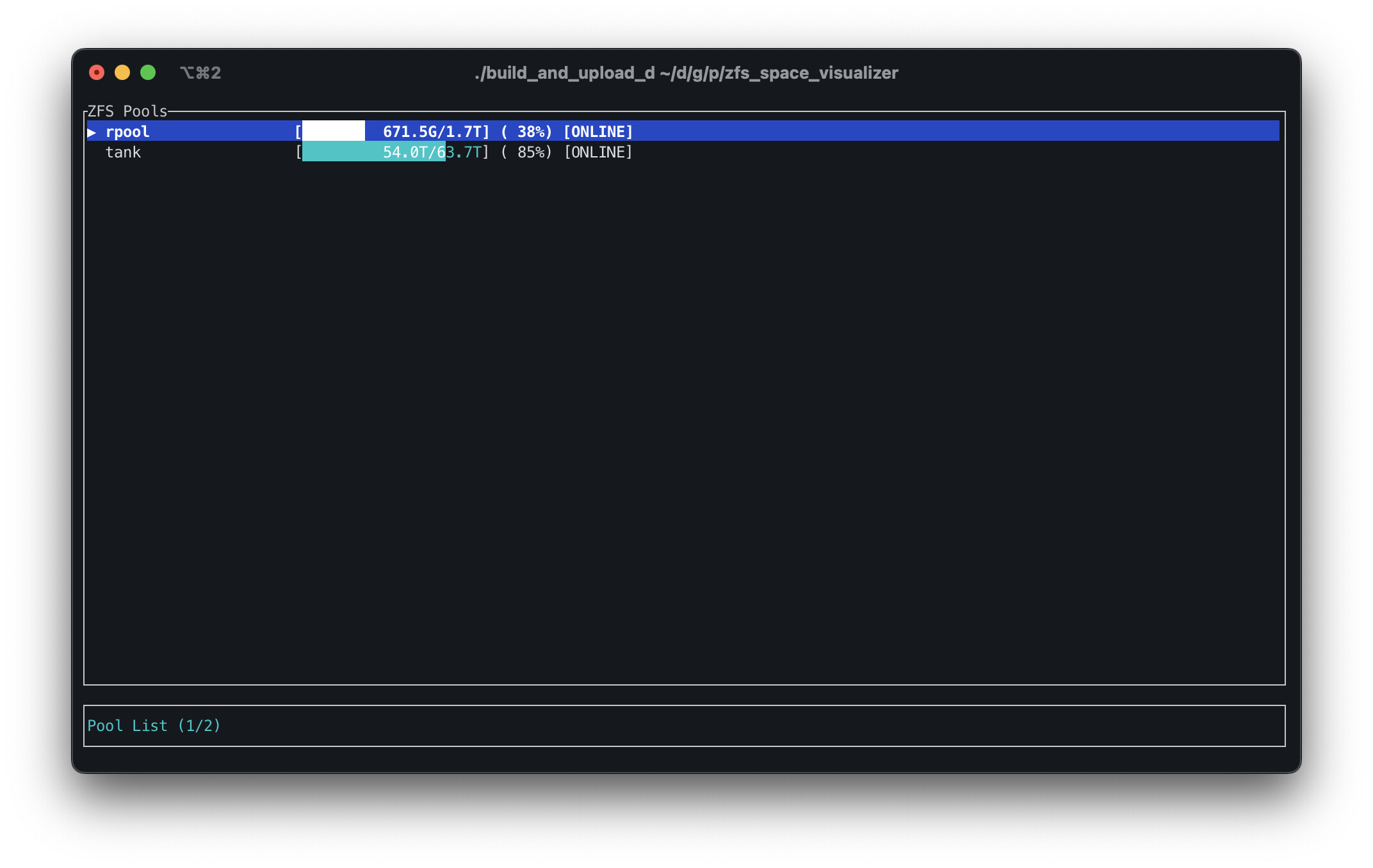

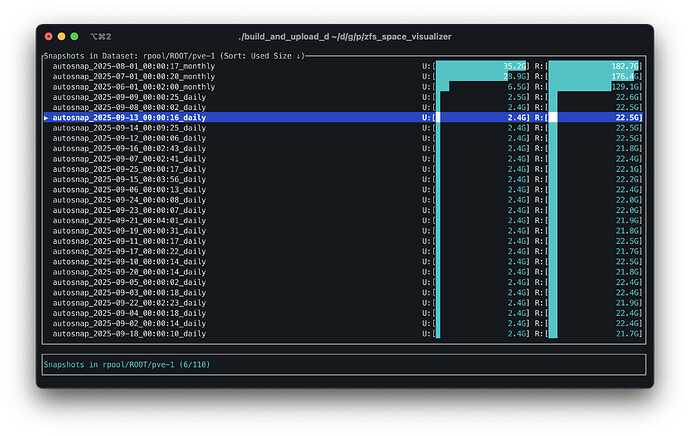

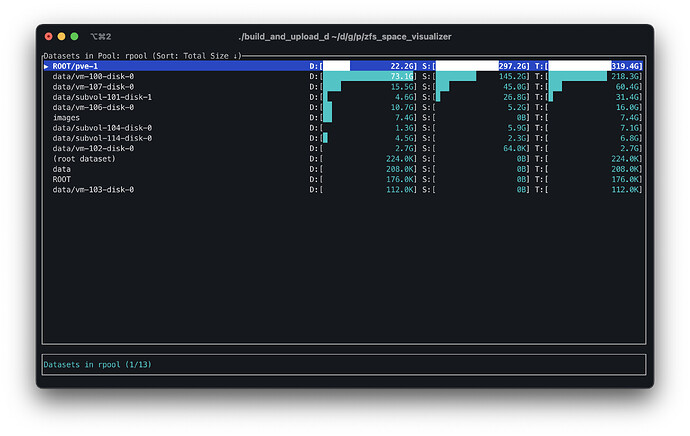

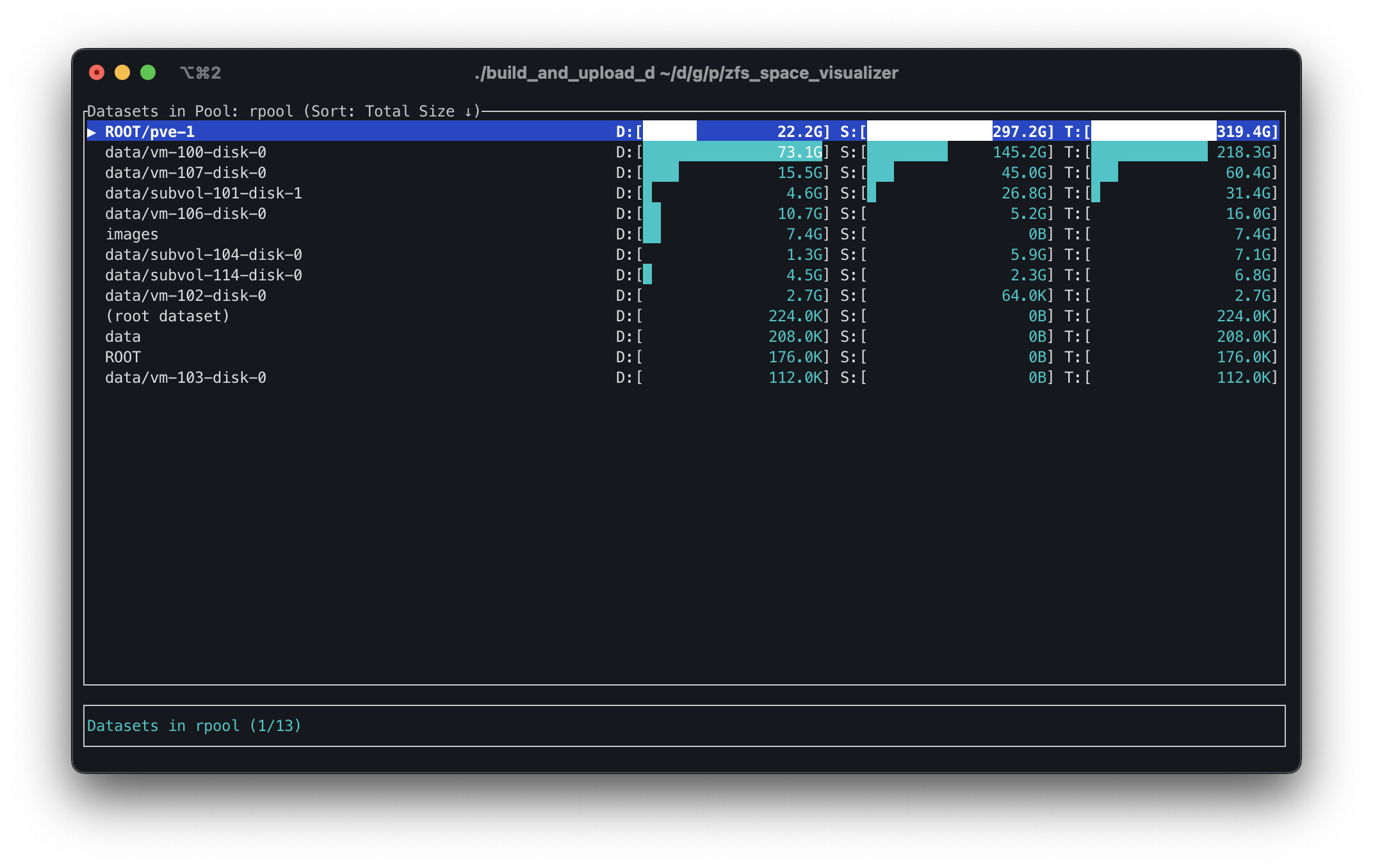

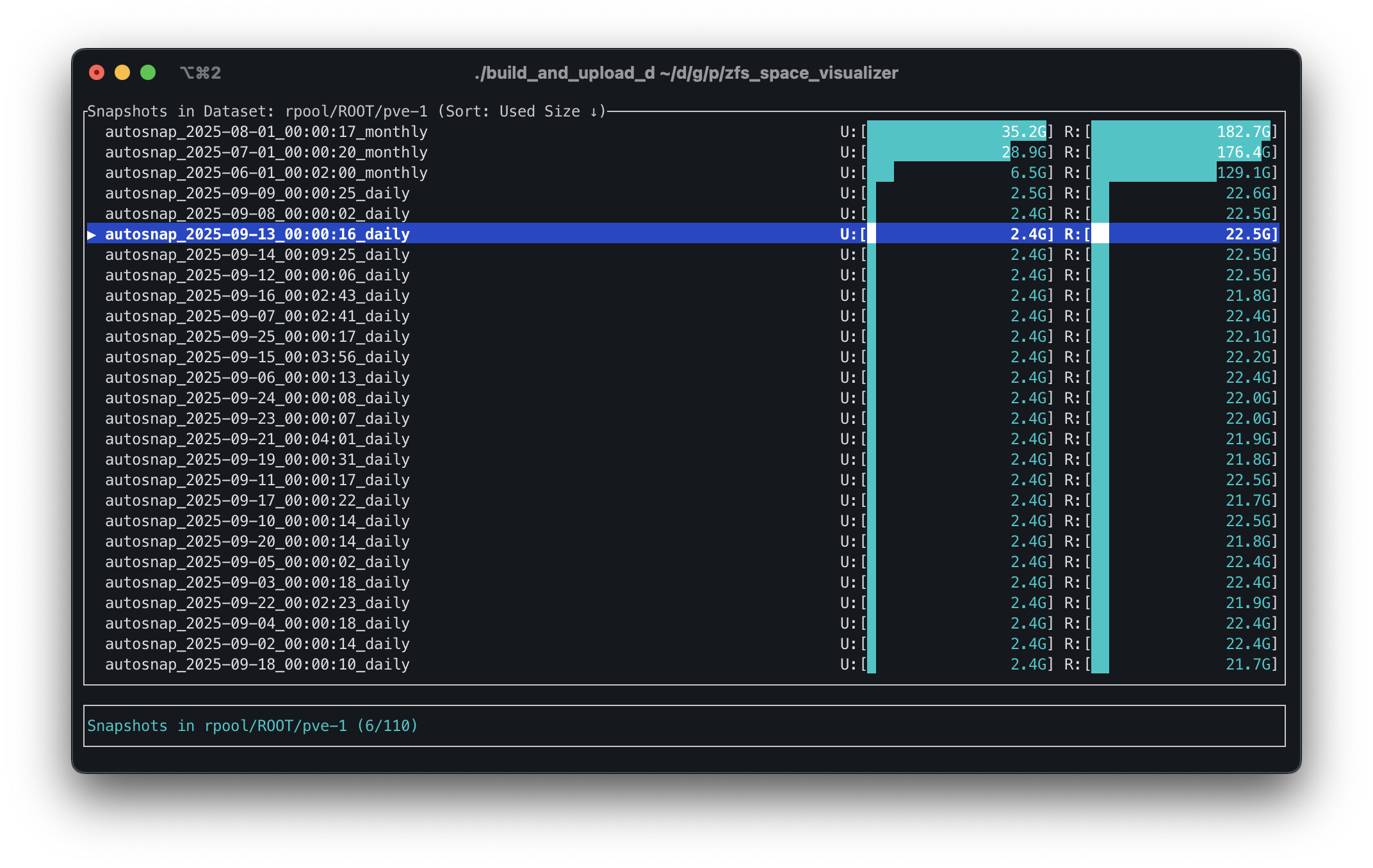

This week I vibe coded a little app that will show you ZFS pools, datasets, and snapshot usage. It also has the ability to push “d” twice to delete a snapshot (but no ability for dataset/pool destroy, for safety purposes). I’m curious what everyone thinks. If you hate it, that’s OK too. I just thought I’d share something that was personally useful to me.

I made it because LibreNMS kept giving me warnings about ZFS space running out, and I would have to login to the server and run a bunch of commands to find out what snapshots were taking the most space.

I don’t know if the usage math works for other pools, but it looks right for my mirror and raidz2 pools.



Try it out at the releases page: Releases · Clete2/zfs_space_visualizer · GitHub
Repo: GitHub - Clete2/zfs_space_visualizer

4 Likes

Looks very slick :slight_smile: One quick request …

Add a --version cmdline parameter so we can see which version we’re running. Should just spit out zfs_space_visualizer 1.0.3

Done! Also added other flags like --readonly, --threads.

I am working on an update command, will have that out soonish.

Interesting.

I also (re)built my own script that handles replication for me. I would have used syncoid/sanoid but those wouldn’t do for single binaries. Since I use XigmaNAS for my storages, I needed a simple script that could be called via cron that can live on one of my pools.

It’s been working really well for me, but would prefer a tool like syncoid.

There’s a portable build of syncoid usable for situations like that. I don’t manage it, but if you Google it, it has its own GitHub project. The author has posted about it in here before!

1 Like

I built a single-binary portable version of sanoid/syncoid/findoid just for this purpose:

My project simply takes the sanoid source and builds it into a self-contained binary that includes the Perl runtime and dependencies. I’m using it for snapshot management on my TrueNAS Core system.

I hadn’t heard of findoid before. I downloaded your portable version but I can’t find documentation or info on how to use findoid. I assume it shows you snapshot space usage?

No, it’s a stub of an idea I had for finding file versions within a long list of snapshots. I never really got it to the point I needed it to be for my own use, and I was actually going to pull it from the project until I discovered people were using it.

I’m not sure how or why, exactly, but people are using it, so there it stays. :slight_smile:

For the purpose findoid was originally intended, I recommend Hot Tub Time Machine (httm). It was created by someone who was inspired by findoid but took it a lot further than I did, although in a different direction (I actually wanted findoid to, eventually, automatically scan disk images WITHIN datasets, mount them, and search for files within those mounted disk images).

Cool.

My script is at GitHub - tschettervictor/xync: POSIX compliant shell script to manage ZFS snapshot replication locally, or between hosts. Created with XigmaNAS in mind.

It’s working really well, but perhaps I’ll look into your as well.

Thanks!

1 Like
